Multifunctional movable-type coding metasurface enabling reconfigurable diffractive neural networks

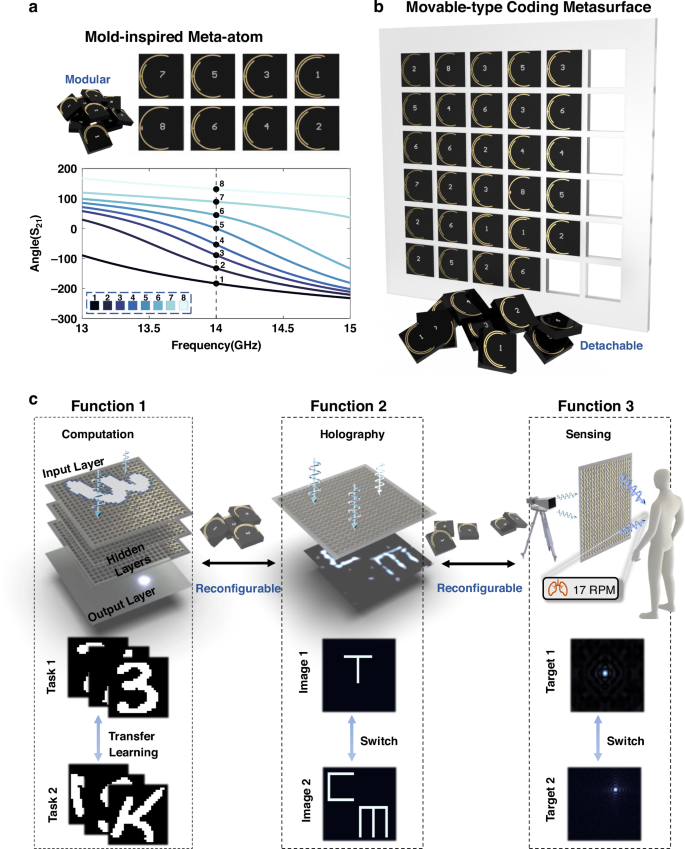

As shown in Fig. 1, the proposed movable-type coding metasurface integrates the modularity of movable-type printing with programmability of metasurfaces. We design eight categories of mold-inspired transmissive meta-atoms working at 14 GHz, each of which has unique EM response, as presented in Fig. 1a. Then, the eight categories of meta-atoms can be assembled in arbitrary configurations, forming a 3-bit movable-type coding metasurface (Fig. 1b). Due to its reconfigurable nature, the proposed metasurface can achieve a variety of EM functions, including holography, human vital sign sensing, and construction of an MT-RDNN through multilayer cascading, as shown in Fig. 1c.

Design and fabrication of mold-inspired meta-atom

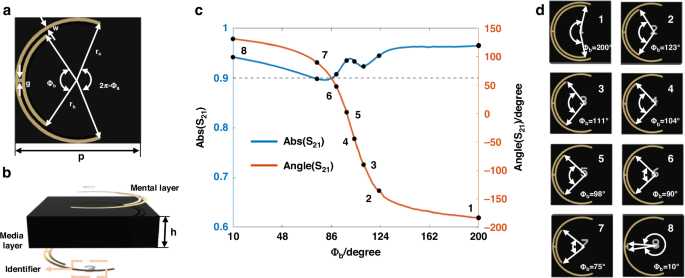

Extending the movable-type printing to metasurfaces, we design eight categories of meta-atoms as the modular “molds”, thus improving the reusability and feasibility of mechanically reconfigurable metasurfaces. Specifically, we design a high-transmission-efficiency Huygens meta-atom, whose structure is shown in Fig. 2a, b. The proposed meta-atom comprises vertically symmetric metallic layers and a dielectric substrate. The relative permittivity ϵ_r is set to 2.2, and the loss tangent tan δ is 0.001. As the value of Φ_b varies, the EM response of the designed meta-atom changes accordingly at the operating frequency. As illustrated in Fig. 2c, when Φ_b increases from 10° to 200°, the meta-atom achieves a dynamic phase modulation range approaching 360°, with a transmission amplitude consistently above 0.9. Leveraging this characteristic, we select eight distinct Φ_b values to design a set of 3-bit meta-atoms, each is capable of generating a unique EM response and serving as the fundamentally units of the movable-type coding metasurface. The schematic diagram of the eight meta-atoms is shown in Fig. 2d, with their corresponding Φ_b values set to 200°, 123°, 111°, 104°, 98°, 90°, 75°, and 10°, respectively. Additional fabrication details are provided in the first section of Materials and Methods.

Multi-layer movable-type coding metasurfaces for EM computing

The proposed modular meta-atoms can be assembled into a multilayer metasurface architecture, thereby constructing a reconfigurable movable-type DNN for EM computing. The proposed MT-RDNN comprises five layers: an input layer, three reconfigurable hidden layers, and an output layer, with adjacent layers separated by 120 mm (approximately 5.6λ at 14 GHz). The input layer is a metal sheet with hollow regions, designed to tailor the incident wavefront for efficient excitation of the subsequent metasurface layers. The hidden layers are composed of three movable-type coding metasurfaces, each containing 20 × 20 modular meta-atoms. During forward propagation, the incident EM wave first passes through the input layer and is sequentially modulated by the three hidden layers before reaching the output layer. During the backpropagation process, the mean squared error (MSE) loss is adopted to measure the discrepancy between the predicted and target outputs. Then, the phase configurations of the network are optimized by iteratively minimizing the MSE loss (see Supplementary Note 1 for details). Adam optimizer is employed to minimize the loss, thereby enabling the system to perform diverse EM tasks. The impact of modulation precision on computing ability is further discussed in Supplementary Note 2, confirming that the proposed meta-atoms can achieve high recognition accuracy with 3-bit quantization. More detailed model training and derivation are described in the second section of Materials and Methods.

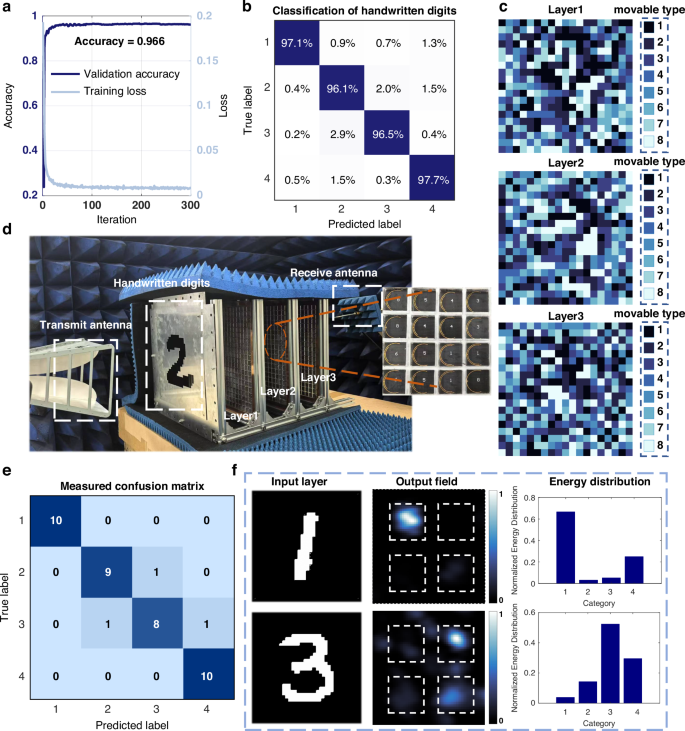

Two classification tasks on the Extended Modified National Institute of Standards and Technology (EMNIST) dataset are performed to evaluate the EM computing capability of the proposed MT-RDNN. The network is initially trained on four categories of digits (“1”, “2”, “3”, and “4”) from the EMNIST dataset. Following data binarization of the training set, the coding patterns of the three metasurface layers in MT-RDNN are optimized using the Adam optimizer. As shown in Fig. 3a, the training loss of the MT-RDNN tends to be stable after approximately 50 iterations. Meanwhile, the validation accuracy converges 96.6% after 300 iterations. Figure 3b displays the confusion matrix on the validation set, indicating that the proposed MT-RDNN achieves a recognition accuracy exceeding 96.1% for the four digital categories. We further find that the recognition accuracy for the 10-class classification task is predominantly determined by the physical capacity of the current architecture, including the number of meta-atoms, the precision of phase modulation, and the number of layers, rather than being restricted by optimization strategies such as the selection of loss function or hyperparameter settings (see Supplementary Note 3 and Table S1 for more details).

The optimized coding patterns for the three hidden layers are shown in Fig. 3c, where each color represents a distinct category of meta-atom. These optimized coding patterns are subsequently implemented to construct the MT-RDNN for handwritten digit classification. The experimental setup is illustrated in Fig. 3d, where a linearly polarized horn antenna is positioned in front of the metallic input layer. Then, the linearly polarized EM wave transmits through the hollow region of the input layer, subsequently impinging on the first metasurface layer. After being modulated by the three hidden layers, the EM wave is focused on the output layer. A scanning near-field microwave microscope (SNMM), positioned 120 mm from the third hidden layer, is utilized to collect the EM wave arrived at the output layer. In Supplementary Note 4, we present the measured transmission efficiency and amplitude responses of 3-bit meta-atoms, which were then incorporated into the network for testing. These results further validate the network’s adaptability and generalization across a wide range of classification tasks. In the experiments, ten samples were randomly selected from each digit category in the test set, resulting in the fabrication of forty metallic input layers. The classification results for the forty samples are summarized in the confusion matrix shown in Fig. 3e, indicating an overall accuracy of 92.5%. Figure 3f shows the results of the MT-RDNN for classifying the handwritten digits “1” and “3”. It could be observed that, the EM wave is concentrated on the upper-left corner of the output layer when digit “1” is input. Meanwhile, the maximum energy appears in the upper-right corner for digit “3”. Furthermore, the electric field distribution across the output layer is quantified by dividing the layer into four regions and independently summing the field intensity within each region. The qualified energy distribution in Fig. 3f also confirms that the region with the highest energy matches the input category. Additionally, the experimental results are consistent with the simulated results, indicating the effectiveness of the proposed MT-RDNN. Furthermore, the impact of alignment errors on the network performance when assembling the MT-RDNN is investigated in Supplementary Note 5.

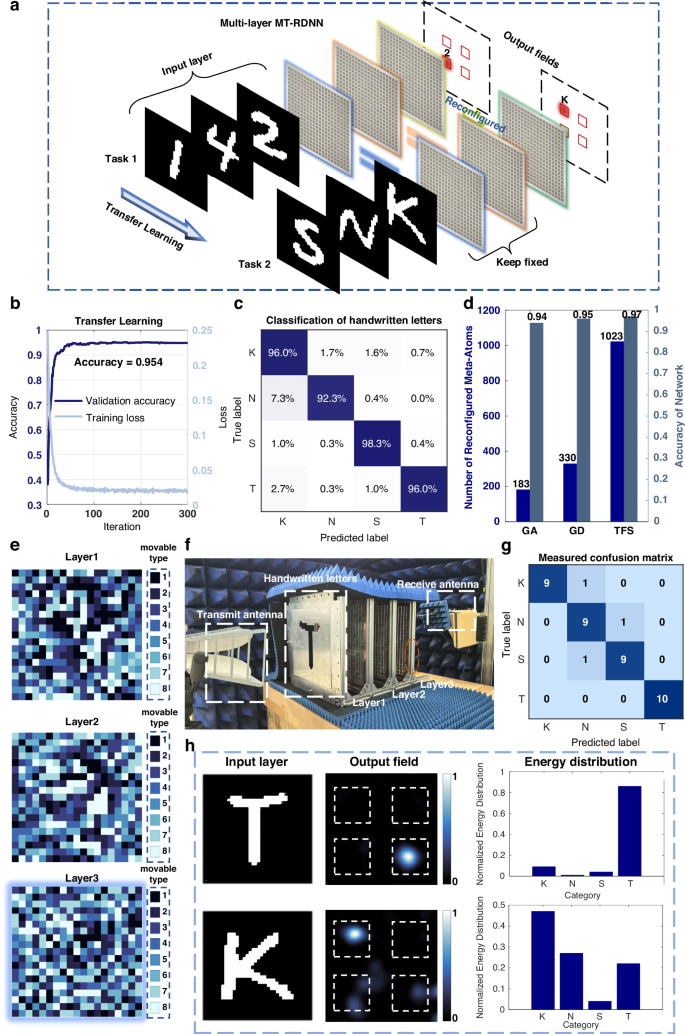

The reconfigurability and task adaptability of MT-RDNN are further evaluated. As shown in Fig. 4a, MT-RDNN trained on the handwritten digit dataset can be adapted to the English letter classification task by updating the coding pattern of the final hidden layer in the network. Specifically, four categories of handwritten English letters, i.e., “K”, “N”, “S”, and “T”, are selected for experiments. To achieve this adaptation efficiently, we employ physical-layer transfer learning, in which certain portions of the coding pattern are retained while the remaining elements are optimized, enabling the implementation of two distinct adaptation strategies. The final hidden layer is fine-tuned using a gradient descent (GD)-based transfer learning algorithm, while the parameters of the other two hidden layers are retained from those of the previously trained digit classification network. The training loss and validation accuracy curves are presented in Fig. 4b, showing that the model achieves an accuracy of 95.4% after approximately 300 iterations. The confusion matrix for the English letter classification task is shown in Fig. 4c. Further classification results obtained by fine-tuning other hidden metasurface layers via the GD algorithm are discussed in Supplementary Note 6. Furthermore, we compare the task adaptation performance of the GD algorithm with that of the genetic algorithm (GA), which is a heuristic transfer learning approach described in Supplementary Note 7. Figure 4d illustrates the performance of the three optimization strategies: GD, GA, and training from scratch (TFS). It should be noted that TFS refers to optimizing the entire coding pattern of the MT-RDNN from scratch, without relying on any pre-trained layers. The simulation results in Fig. 4d indicate that both GD and GA significantly reduce the number of meta-atoms to be reconfigured compared to the TFS strategy, while still maintaining high recognition accuracy. However, although GA requires fewer meta-atom reconfigurations, it leads to a slight degradation in recognition accuracy. Thus, balancing the reconfiguration efficiency and recognition performance, we select the GD-based transfer learning strategy for the subsequent experiments.

The meta-atoms of the third hidden metasurface layer are reconfigured based on the optimization results in Fig. 4e, while the remaining hidden layers are retained from the handwritten digit classification experiment. The experimental setup of the MT-RDNN for English letter classification is shown in Fig. 4f, which is largely consistent with that used for digit classification. Ten samples from each of the four categories were randomly selected and fabricated into a total of forty metallic input layers. The confusion matrix in Fig. 4g summarizes the experimental results, revealing an overall recognition accuracy of 92.5%. Experimental results for classifying the letters “T” and “K” are shown in Fig. 4h. Specifically, when the letter “T” is input, the electric field output by the last hidden layer is predominantly focused in the lower-right region. In contrast, the energy of the incident EM wave is concentrated in the upper-left region when the MT-RDNN is adopted to classify the letter “K”. Moreover, the output layer is evenly divided into four regions to quantitatively evaluate the output electric field distribution. The resulting charts of energy distribution in Fig. 4h reveal the high recognition accuracy of the MT-RDNN in the English letter recognition task. Experimental results demonstrate that the proposed MT-RDNN enables efficient adaptation across different tasks by replacing only a subset of meta-atoms within the multilayer metasurfaces. These results demonstrate that MT-RDNN can efficiently adapt to different tasks by reconfiguring only a subset of meta-atoms while preserving the remaining layers. To further validate its scalability and applicability, we extended the study to more complex scenarios, including ten-class classification as detailed in Supplementary Note 8, and to operating bandwidth analysis as presented in Supplementary Note 9, where experimental results showed an effective bandwidth of approximately 520 MHz. Moreover, the modular and detachable nature of the meta-atoms enables low-cost and seamless task migration, highlighting the potential of MT-RDNN as a practical and scalable solution for EM computing.

Single-layer movable-type coding metasurface for EM holography

In addition to performing EM computation through a multi-layer architecture, the movable-type coding metasurface can also achieve EM holography using a single-layer configuration. A holography optimization algorithm based on GD⁵³ is employed to optimize the coding pattern of the metasurface, as shown in Fig. 5a. Under the assumption of plane-wave incidence, the diffraction between the excitation source and the metasurface can be neglected. Therefore, the forward propagation of the EM wave is expressed as

where \(U\) denotes the output EM field reaching the observation plane, and W represents the diffraction matrix derived from the Fresnel diffraction approximation. \(\varPhi\) denotes the coding pattern matrix of the metasurface, and O is the output EM intensity. M =\({diag}\left({e}^{j\varPhi }\right)\) denotes a diagonal modulation matrix, where each diagonal element corresponds to the complex transmission coefficient (with meta-atom amplitude and phase \(\varPhi\)) of a meta-atom in the metasurface. To quantitatively evaluate the hologram quality, the Pearson Correlation Coefficient (PCC) is employed to measure the similarity between the simulated output field distribution and the target pattern, which is calculated as

where T and O denote the target and output EM field distributions, respectively. \(\bar{T}\) and \(\bar{O}\) denote the average values of the target electric field distribution T and the output field distribution O, respectively. The PCC quantifies the similarity between the simulated and target patterns, with the value closer to 1 indicating higher similarity. Accordingly, the loss function for optimizing the coding pattern of the metasurface is defined as \({Loss}(T,O)\,=\,1-{PCC}(T,O)\). The gradient of the phase distribution with respect to the loss function is expressed as

where the symbol ⊙ denotes element-wise multiplication, Im(·) indicates imaginary part of a complex-valued function, U^* represents the complex conjugate of U and W^T represents the transposed diffraction weight matrix used for backward propagation, in the direction opposite to W.

In the experiment, 900 modular meta-atoms were employed to construct a 30 × 30 movable-type single-layer metasurface with overall dimensions of 420 mm × 420 mm. The experimental setup for EM holography is illustrated in Fig. 5b, comprising the movable-type coding metasurface, a transmitting horn antenna, and a receiving antenna positioned 300 mm behind the metasurface. Two coding patterns of the metasurface, shown in Fig. 5c, f, respectively, were optimized to generate the holographic images “T” and “CM,” respectively. In the experiment, the horn antenna was positioned 2.0 m in front of the metasurface, resulting in an incident wavefront that deviates from the ideal plane-wave assumption. To mitigate this effect, a phase compensation approach was employed, in which the coding pattern obtained from gradient descent optimization was further modified by incorporating the measured phase deviation. Additional experimental configurations under different incident conditions, together with the corresponding compensation strategies, are provided in Supplementary Note 10. Figure 5d, e present the simulated and measured reconstructions of “T”, respectively, indicating that the movable-type coding metasurface can produce a desired holographic image. Similarly, Fig. 5g, h display the simulated and measured field distributions corresponding to the coding pattern in Fig. 5f, showing excellent agreement between simulations and experiments.

Single-layer movable-type coding metasurface for human vital sign sensing

Owing to its reconfigurability and EM wave focusing capability, the proposed movable-type coding metasurface can also be employed for contactless human vital sign sensing. This sensing paradigm relies on the analysis of wireless signal perturbations induced by subtle physiological movements, such as respiration-driven chest displacement and skin vibrations. To achieve this, the proposed metasurface focuses EM waves onto the human chest, thereby reducing noise interference from the surrounding environment and limb movements during vital sign sensing. In this way, the sensing system enables the inference of underlying physiological states and behaviors by extracting and interpreting variations in the reflected EM signals. Subsequently, variational mode decomposition (VMD) algorithm²⁰ is adopted to extract human respiration signal and estimate the respiration rate. The working pipeline of the respiration sensing system is illustrated in Fig. 6a.

The experimental setup for contactless vital sign sensing is shown in Fig. 6b. A universal software radio peripheral (USRP), controlled via LabVIEW 2019, functions as both transmitter and receiver. A 3.5 GHz baseband signal is generated and upconverted to 14 GHz using a frequency mixer, then transmitted toward the metasurface through a horn antenna. The signal reflected from the human chest is captured by a receiving antenna and down converted using the USRP. Meanwhile, a wearable piezoelectric sensor HKH-11C is employed as the reference to acquire ground-truth respiratory data. Both the USRP and HKH-11C are synchronized via the timestamps to ensure precise temporal alignment. Figure 6c, g illustrate the vital sign monitoring results of Bob and Tom, respectively, both located approximately 300 mm from the metasurface. Owing to their distinct spatial positions, two distinct coding patterns were optimized to focus the transmitted energy onto the chest regions of each subject, as shown in Fig. 6d, h. Then, the measured EM field distributions are presented in Fig. 6e, i, respectively. The full width at half maximum (FWHM) is employed to quantify the focal spot size, as indicated by the white dashed lines in Fig. 6e, i. Specifically, the FWHM of the two focal spots are measured to be 50.4 mm and 46.7 mm, respectively, confirming efficient energy concentration on the targeted chest regions. The extracted respiratory signals of Bob and Tom, shown in Fig. 6f, j, exhibit clear periodicity, enabling accurate estimation of respiration rates consistent with benchmark sensor measurements. Furthermore, Supplementary Note 12 presents additional discussions about the effects of mutual interference in multi-subject scenarios, as well as variations arising from different clothing conditions. These results collectively demonstrate the effectiveness of the single-layer movable-type coding metasurface for contactless sensing, highlighting its potential for non-invasive and real-time monitoring of human vital signs.
